27236-27264 RT 189, Blue Jay, CA - Mixed Use - Retail/Office

GKA Architects provided architectural design services for the major renovation of their two-building, 50,000sf shopping center located in the Southern California mountain community of Blue Jay Village.

The project includes the complete removal and redesign of the facades of both buildings, including a new two-story clerestory-roof atrium entry for the anchor tenant, a regional supermarket chain. The project's steeply sloped, complex site - which rises two stories along the 180ft width of the multi-tenant building - poses considerable design challenges for the accessible parking configuration and path of travel.

The design utilizes mountain-lodge heavy timber language both for contextual aesthetics, and to meet California's strict Wildland-Urban Interface building and fire code requirements for the region.


Project Information

Location: 27240-27264 California Route 189, Blue Jay, CA 92317

Project [Building] Area: 50,000 sf

Occupancy: M [Mercantile]

Construction Type: V-A [Fully Sprinklered]

Cost: $2.2 M

Year Built: TBD

Consultants: Musolino Architecture [Arch], Critical Structures Inc [Structural], Budlong and Assoc [MEP], HMK Engineering [Civil]

supermarket rendering 1.jpg
supermarket night rendering 1.jpg

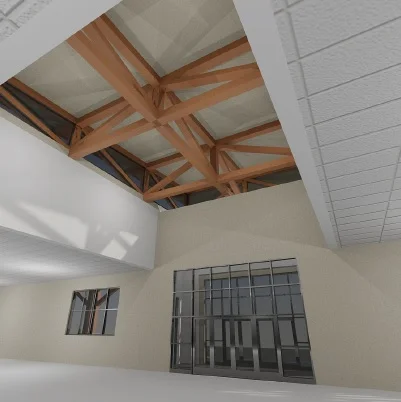

supermarket atrium rendering 1.jpg

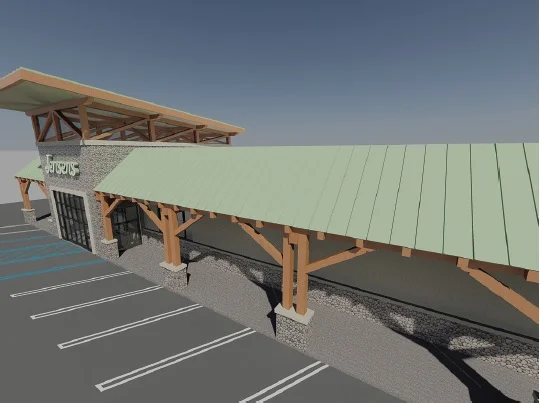

supermarket rendering 2.jpg

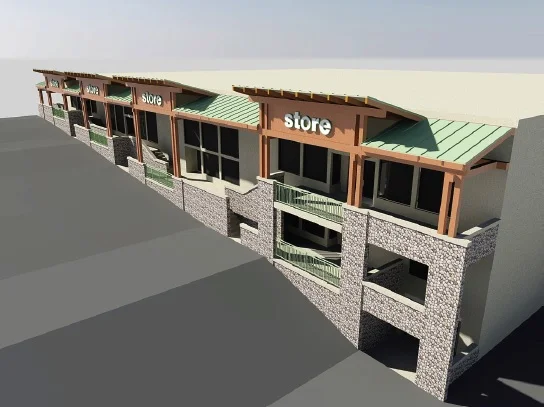

shopping center rendering 1.jpg

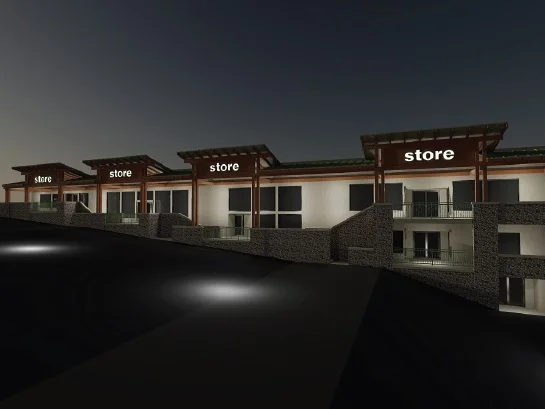

shopping center rendering 2.jpg

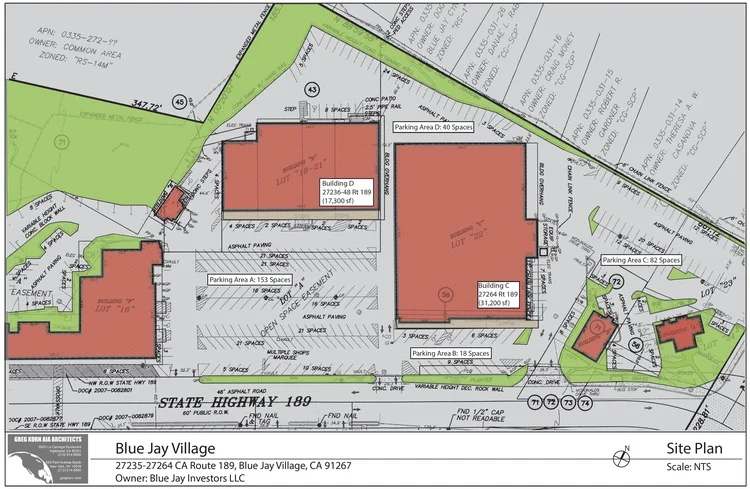

supermarket  site plan.jpg

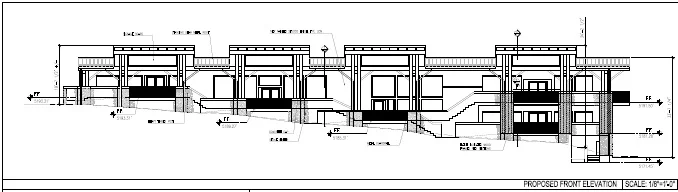

shopping center elevation 1.jpg

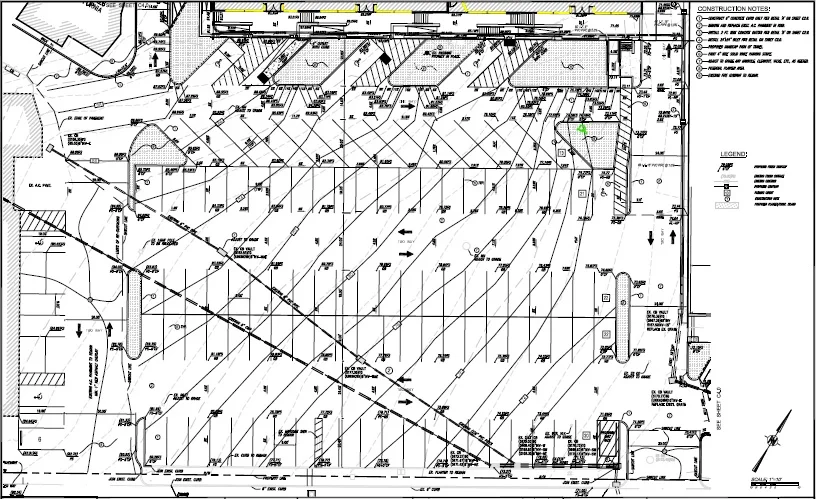

shopping center grading plan 1.jpg

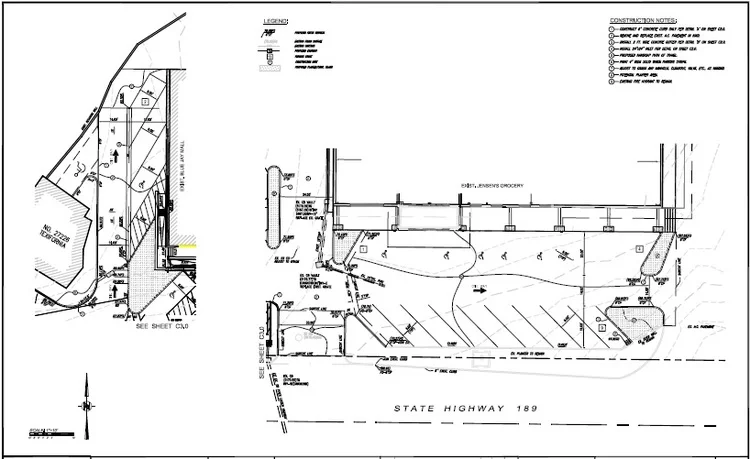

shopping center grading plan 2.jpg

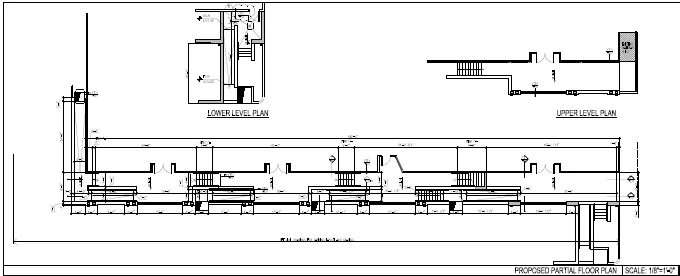

shopping center plan 1.jpg

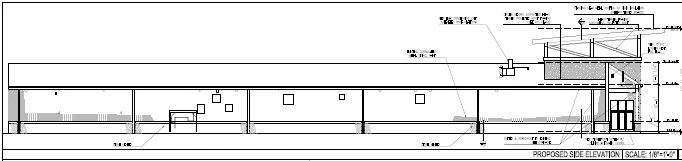

supermarket elevation 1.jpg

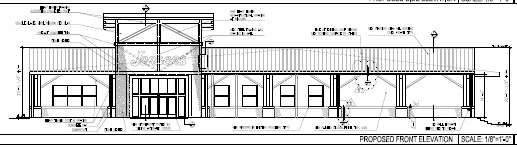

supermarket elevation 2.jpg

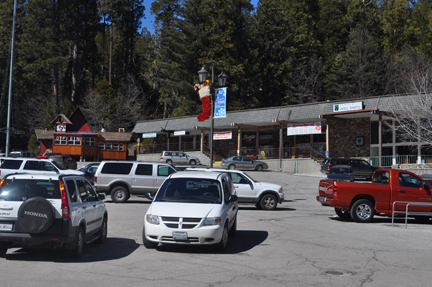

shopping center existing photo 1.JPG
shopping center existing photo 2.JPG

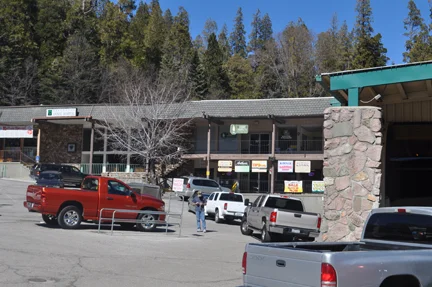

shopping center existing photo 3.JPG
